特性及應用：

CKZF-C 系列為非接觸楔塊式單向離合器。有軸承支撐及油封。內環超越旋轉，*內環被

設計成有單向功能。離合器內部已加注潤滑脂。

內環有鍵，外環及法蘭止口聯結零件。安裝于水平或垂直方向。

此型號主要用于高速工況下防止逆轉，亦可用于超運轉速度離合器之高速超越、低速楔合

的雙速驅動切換裝置。

Characteristics and application:

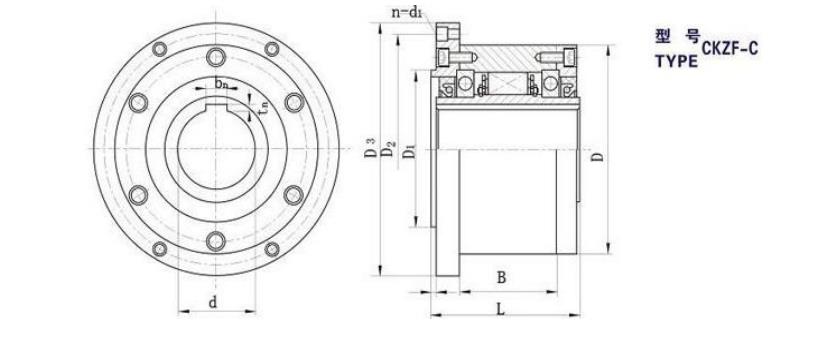

CKZF - C series for non-contact wedge type overrunning clutch.Have a bearing support

and oil seal.The inner ring beyond rotation, only the inner ring is designed to have a one-way

function.Inside the clutch has been filling grease.The inner ring have a key, outer ring

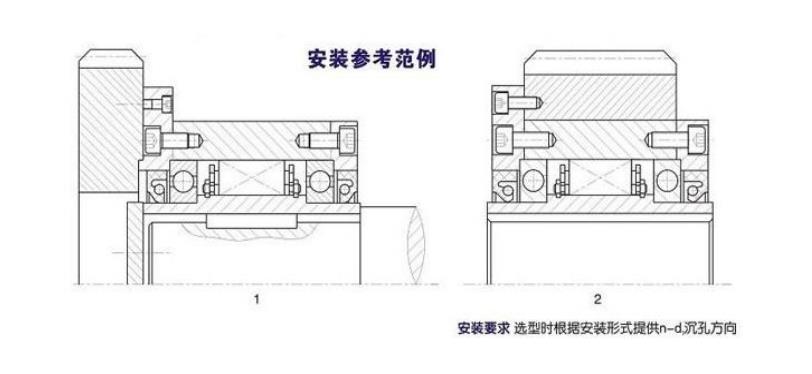

and the flange check connection parts.Installed in horizontal or vertical direction.This

model is mainly used for high speed working conditions to prevent reverse, can also be used

in super speed clutch of high-speed beyond, wedge double-speed drive at low speed switchingdevice.
