特性及應用：

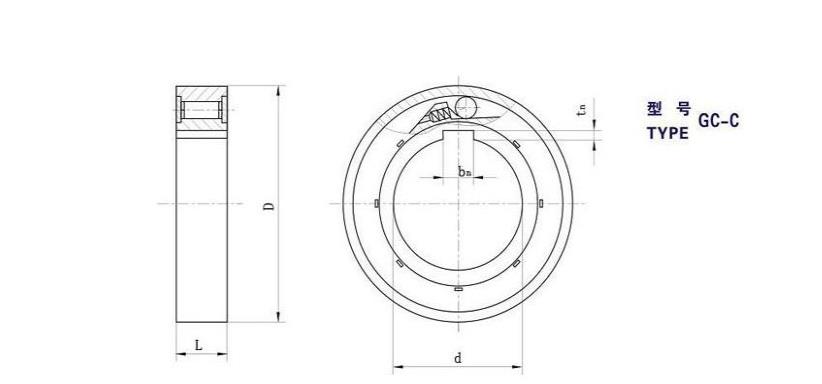

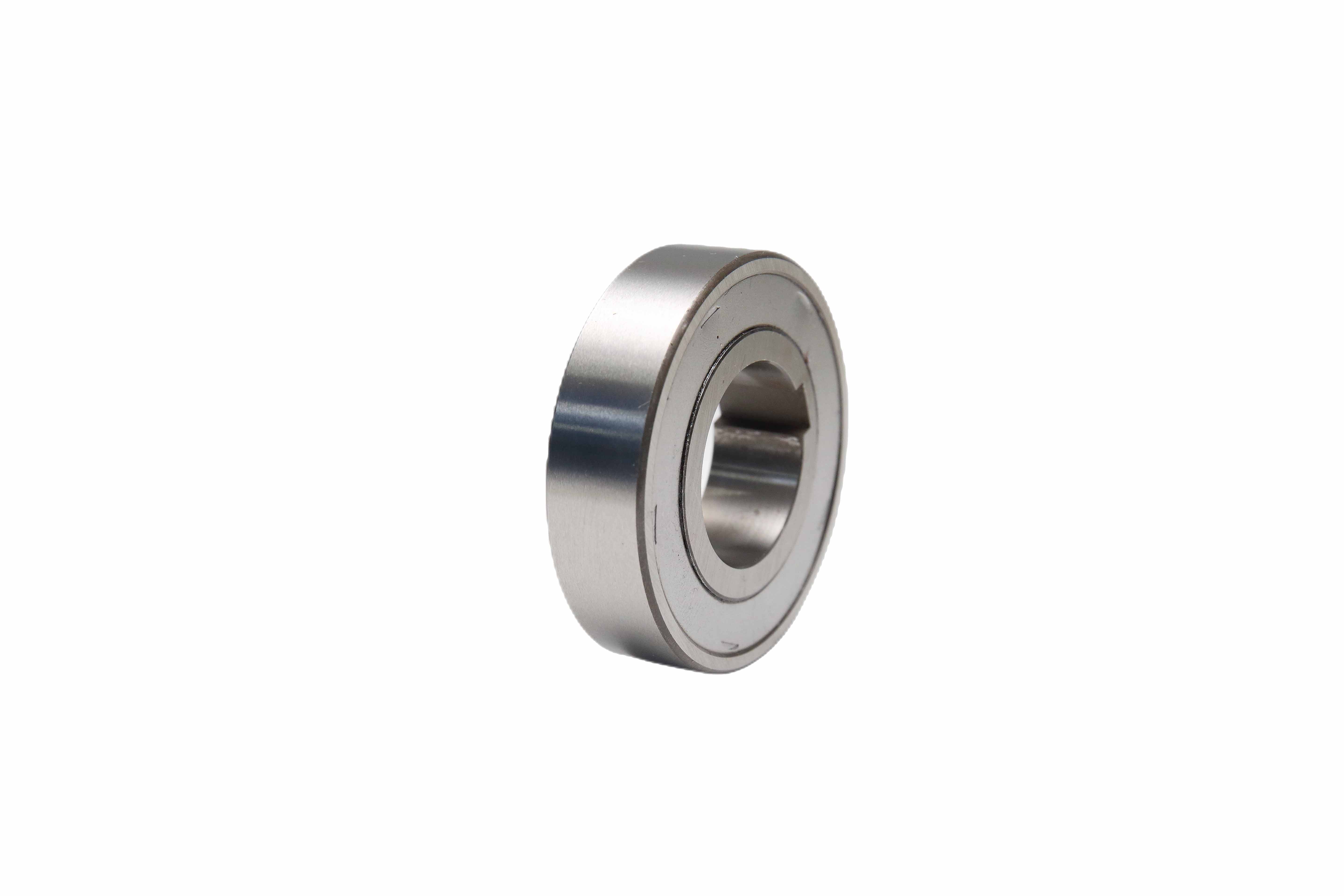

GC-C 系列為無軸承支撐滾柱式單向離合器，外形尺寸與 62 系列標準軸承相同。出廠時已加注潤滑脂。

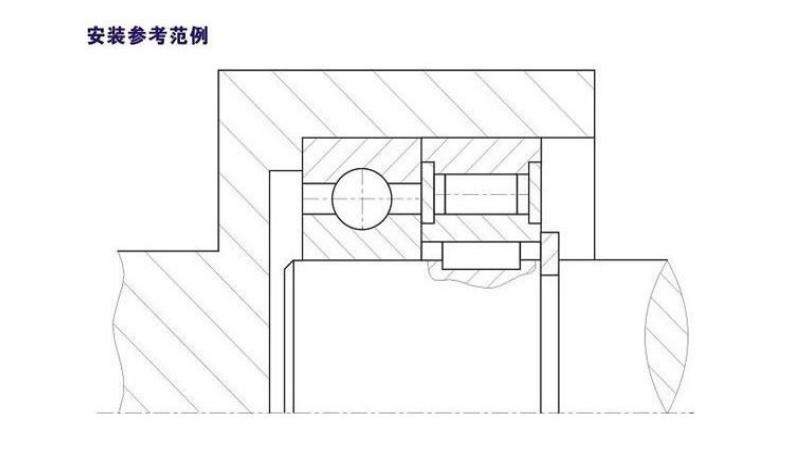

典型安裝方式為系列與 62 系列軸承同軸并排，相同的位置，相同的公差要求。內環與軸使用鍵槽方式安裝，外環尺寸公差

為 n6 須過盈壓入 k7 的機壁中，但機壁的剛度要足夠。

該系列常用于包裝、印刷、食品、醫療、紡織、化工等機械設備上。

Characteristics and application:

GC - C series for bearing supporting miler overrunning clutch, shape size is the same as the 62 series standard

bearings.The factory has been filling grease.Typical installation for the series and 62 series bearing coaxial side by

side, the same position, the same tolerance requirement.The inner ring and the shaft installed with a key, the outer

ring size tolerance for n6 should interference pressure into the machine wall of k7, but machine wall stiffness should

be enough.This series is often used in packaging, printing, food, medical, textile, chemical industry and othermechanical equipment.
