特性及應用：

GC-D 系列為無軸承支撐滾柱式單向離合器。使用時需要配合軸承安裝以承受軸向負載，使用者亦需

提供潤滑油脂以及外部的油封。標準潤滑方式為使用機油潤滑。

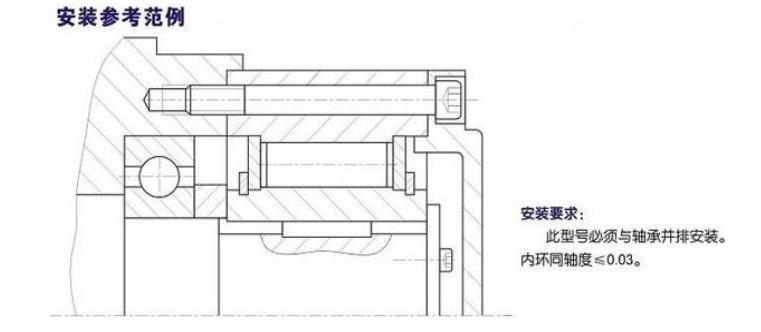

標準安裝方式為外環與止口配合，并用螺栓固定。內環與軸以鍵聯結。工件機壁孔之公差必須為 H7，

*內外環較高同軸度。

該系列常用于包裝，印刷，食品，醫療，紡織化工等機械設備上。

Characteristics and application:

GC - D series for bearing supporting miler overrunning clutch.When using need to cooperate

with the bearing installed to withstand the axial load, the user must also provide

lubricating grease and external oil seal.Standard lubrication method is used engine oil

lubrication.Standard installation way as the outer ring with seam allowance, and bolted.The

inner ring and shaft to key link.Tolerance of workpiece machine wall hole must be H7, ensure

higher coaxial degree of inner and outer ring.This series is often used in packaging,

printing, food, medical, textile chemical and other mechanical equipment.
