特性及應用 :

CK-A 系列為無軸承支撐的楔塊式單向離合器。徑向尺寸與標準軸承尺寸相同，使用時

需配合軸承安裝，以承受軸向負載與徑向負載，出廠時已加注潤滑油。

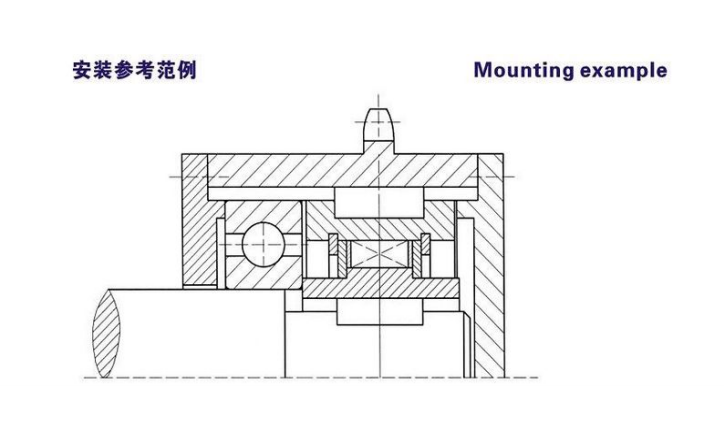

標準安裝方式為 CK-A 型號與軸承同軸并排，相同的公差要求。內外環用鍵連接在軸和轂上。

該系列常用于提升機、輸送機以及包裝印刷、食品、化工、醫療、紡織等機械設備上。

Characteristics and application:

CK - A series of no wedge type one-way clutch

bearings.Radial size and standard bearing the same size, when using, need to cooperate with

the bearing installation, to withstand the axial load and radial load, factory has been

filling lubricating oil.Standard installation for CK - A model with bearing coaxial side

by side, the same tolerance requirement.Inner and outer ring with key connection on the

shaft and hub.This series of often used to improve machine, conveyor, as well as packaging

and printing, food, chemical, medical, textile and other mechanical equipment
