特性及應用：

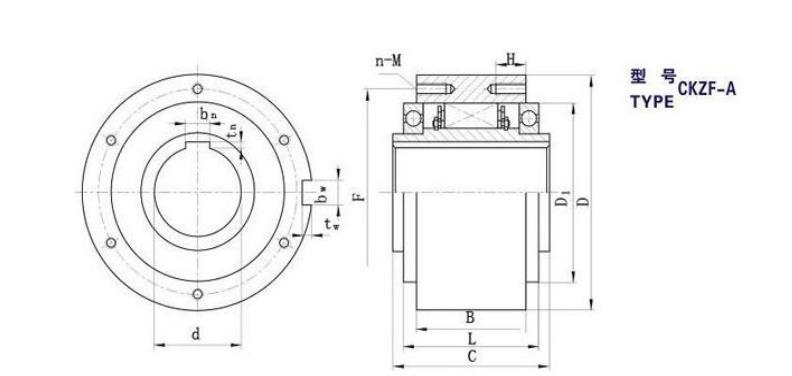

CKZF-A 為有軸承非接觸楔塊式單向離合器。使用 2 只 60 系列軸承支撐。內環超越旋轉，*

內環被 設計具有單向功能。出廠時含有潤滑脂。

內外環有鍵槽，端面帶螺孔，可安裝子垂直或水平方位位置。

用于高速工況下防止逆轉或起運轉速度應用例.

 For bearing features and application:

CKZF - A non-contact wedge type overrunning clutch.Use 2 only 60 series bearing

support.Inner ring beyond rotation, only the inner ring is designed with one-way function.Factory

with grease.Inside and outside the ring has a keyway, end face with screw hole, the son can be

installed in vertical or horizontal position.Used for high speed working conditions to prevent reverse

or speed application cases.
