特性及應用：

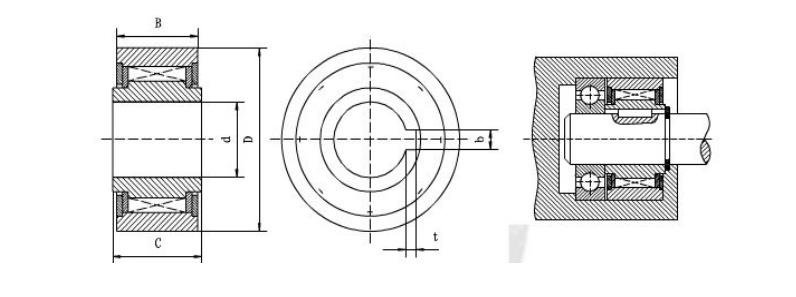

CK-C 系列為無軸承支撐的楔塊式單向離合器。徑向尺寸與標準軸承尺寸相同，使用時需配合軸承

安裝，以承受軸向負載與徑向負載，出廠時已加注潤滑脂。

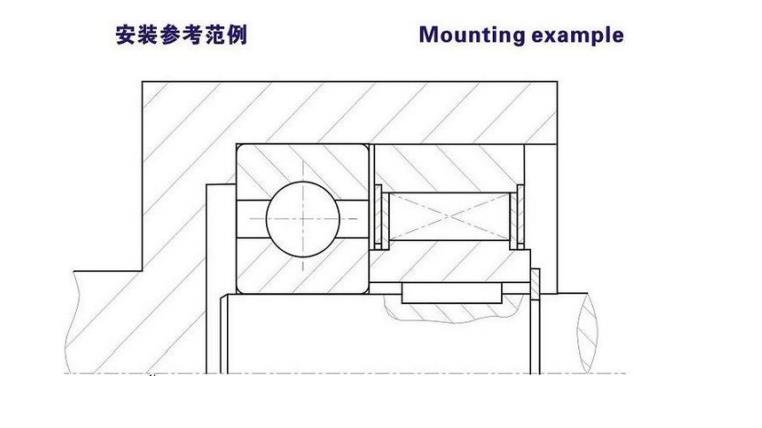

標準安裝方式為 CK-C 型號與軸承同軸并列，相同的公差要求。內環與軸用鍵連接外環尺寸公差為

n6 需與公差為 k7 的機壁過盈配合，但機壁的鋼度要足夠。

該系列常用于提升機、輸送機以及包裝印刷、食品、化工、醫療、紡織等機械設備上。

Characteristics and application:

CK - C series to wedge type one-way clutch

bearings.Radial size and standard bearing the same size, when using, need to cooperate with

the bearing installation, to withstand the axial load and radial load, factory has been

filling grease.Standard installation for CK - C model and bearing coaxial, the same tolerance

requirement.Outside the inner ring connected to the shaft with a key ring size tolerance

for n6 with the tolerance for k7 machine wall interference fit, but the machine wall stiffness

should be enough.This series of often used to improve machine, conveyor, as well as packaging

and printing, food, chemical, medical, textile and other mechanical equipment.
