特性及應用：

CK-B 系列為無軸承支撐外環兩端面帶鍵槽的楔塊式單向離合器。

徑向尺寸與標準軸承尺寸相同。使用時需配合軸承安裝，以承受軸向負載與徑

向負載。出廠時已加注潤滑脂。

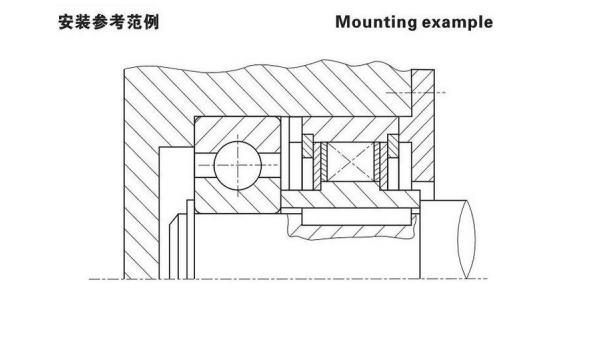

標準安裝方式為 CK-B 型號與軸承同軸并排，相同的公差要求。內環與軸用鍵

連接，外環尺寸公差為 h7 與公差為 H7 的機壁配合，外環兩側端面鍵用于固定

外環與機壁以傳遞扭矩。

該系列常用于包裝、印刷、食品、醫療、紡織、化工等機械設備上。

Characteristics and application:

 CK - B series for no bearing supporting outer ring two

end face with slot wedge type overrunning clutch.The radial size and standard bearing the

same size.When used to cooperate with bearing installed to withstand the axial load and

radial load.The factory has been filling grease.Standard installation for CK - B model and

bearing coaxial side by side, the same tolerance requirement.Inner ring connected to the

shaft with a key, the outer ring size tolerance for h7 and tolerance for h7 machine wall,

outer ring on both sides of the fixed end keys used for outer ring wall and machine to transfer

torque.This series is often used in packaging, printing, food, medical, textile, chemical

industry and other mechanical equipment.
