特性及應用：

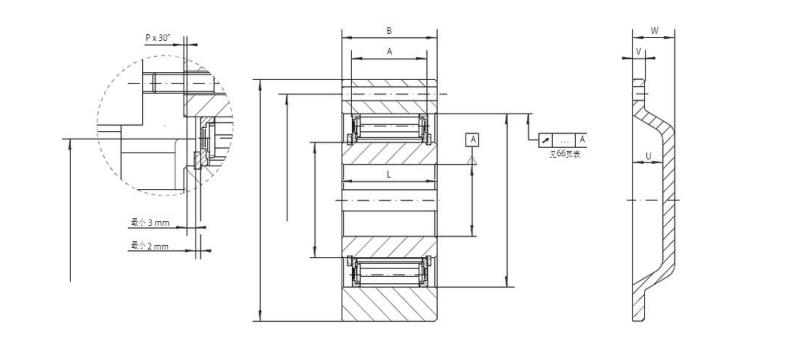

集成式單向離合器 FXM 是不帶軸承的離心非接觸式 X 系列單向離合器。

當內環轉速高時，*單向離合器無磨損運行。

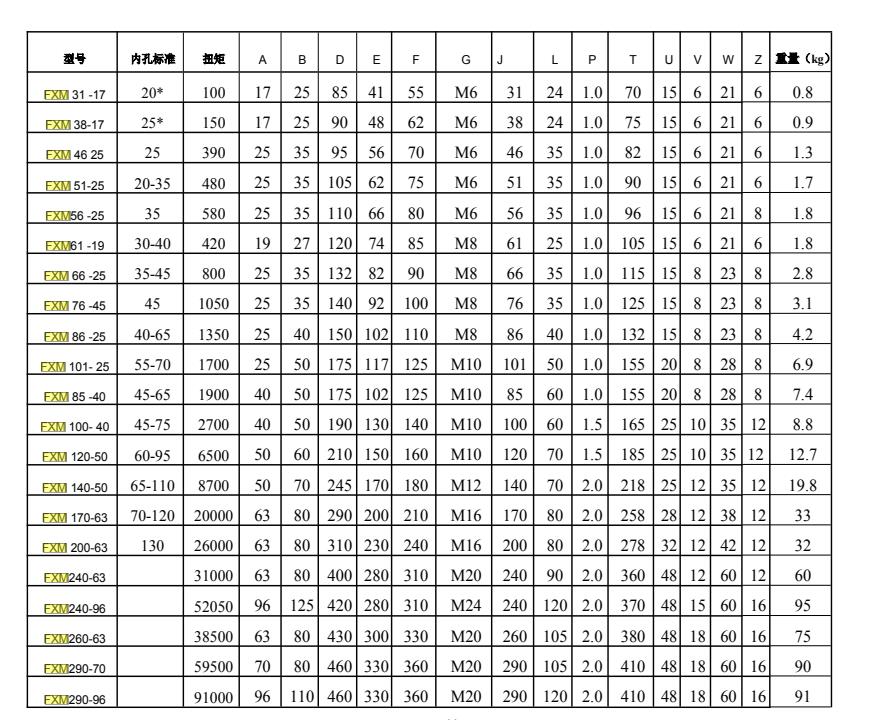

適應于高速空轉運行，低速同步運行，額定扭矩可達 364000Nm，內孔直徑可達 320mm。

Properties and applications:

ntegrated one-way clutch FXM is without centrifugal non-contact one-way clutch bearings.When the

inner ring speed high, run a one-way clutch wear.Adapted to high speed idling running, synchronous running

at low speed, the rated torque of 364000 nm, inner hole diameter is 320 mm.

離心非接觸式 X 系列

離心非接觸式 X 系列主要用于那些內環高速旋轉的逆止器，在高速旋轉時，楔塊在離心力的作用下脫離和外

環接觸，在這種模式下，單向離合器沒有任何磨損，即使用壽命是無限長的。

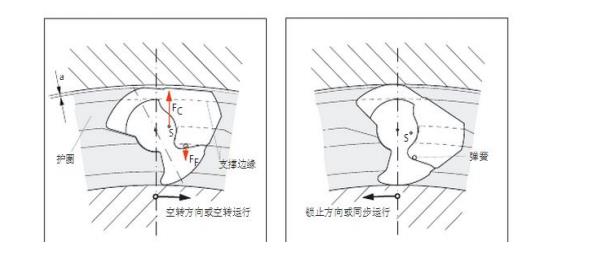

離合器在非接觸式 X 運轉時，楔塊及保持架是隨內環一起旋轉。離心力 Fc 促使楔塊沿保持架逆時針旋轉，這

樣楔塊與外環之間產生間隙。在這種狀態下離合器的運轉是沒有任何摩擦的。

Centrifugal non-contact X series

centrifugal non-contact X series are mainly used for the inner ring of high-speed rotating non-return

device, the high speed rotates, wedge under the action of centrifugal force from contact with outer

ring, in this mode, a one-way clutch is no wear and tear, that is infinitely long service life.Clutch

in non-contact X operation, wedge and keep with the inner ring spinning frame is.Centrifugal force Fc

prompted wedge along maintains a counterclockwise, such a wedge with outer ring gap.In this state there

is no any friction clutch operation.
