特性及應用：

AE 系列是沒行軸承支撐的滾柱式單向離合器，使用時需要有軸承來承受徑向及軸向載荷，并且要

存潤滑及密封。

外徑名義尺寸與標準球軸承相同。

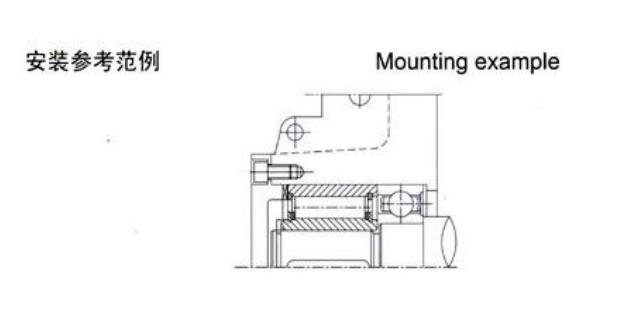

這種離合器的典型使用就是與一個具有相同孔徑公差的軸承一起承受。

離合器的內圈用鍵固定在軸上，外圈由為 R6 等級的正公差?？梢詨喝牍顬?H7 的坐孔，傳遞正向

扭矩時需要有凹槽。

如果坐孔的公差等級為 R6，就不需要鍵齌、但外圈座必須有足夠的強度，避免裝配變形。

Characteristics and application:

AE series is not line miler overrunning clutch bearings, when using need to carry the radial and axial load, and put

the lubrication and sealing.Outside diameter nominal size is the same as the standard ball bearing.Typical use of the

clutch is that with a bearing with the same diameter tolerance.Clutch of the inner ring with key fixed on the shaft,

the outer ring by the R6 rank is tolerance.Can be pressed into the tolerance for H7 hole, transfer require a groove

positive torque.If sit hole tolerance grade for R6, but there is no need for key 齌, outer ring must have enough

strength, avoid deformation and assembly
