特性及應用：

CSK 系列楔塊式超越離合器又稱單向旋轉球軸承，外形尺寸與 62

系列深溝球軸承相同（CSK40 除外）。

它是深溝球軸承和楔塊式離合器的組合，其內部已填筑潤滑脂。密封可以防止 0.3mm 以上灰塵進

入內部。轉矩的傳遞為過盈配合方式，以 N6 公差將外環與剛性足夠的機架壓合，將內環與工作軸外

徑壓合。安裝時要注意，不可敲打內環壓迫外環進入機架，及不可敲打外環壓迫內環擠入軸外徑的

方式安裝，傳遞扭矩?。?.4-260N.m），極限轉速高。廣泛應用于印刷機械、包裝機械、食品機械、

電動滾筒、減速機及測試設備等傳遞中。

Characteristics and application:

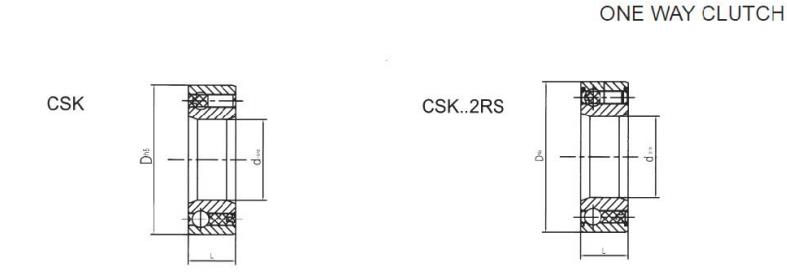

CSK series wedge type overrunning clutch, also known as one-way rotating ball bearing,

shape size is the same as the 62 series deep groove ball bearings (except CSK40).It is deep

groove ball bearing and the combination of wedge type clutch, its internal filling

grease.Sealed to prevent more than 0.3 mm dust into the interior.Torque transfer for full

cooperate way to N6 tolerance to the outer ring and rigid enough frame pressing, pressing

will work the inner ring and shaft diameter.When installation should pay attention to, do

not knock the inner ring oppression outer ring into the frame, and way of tapping into outer

ring compression internal ring shaft diameter installation, torque is small (7.4-260 n.

m), high limit speed.Widely used in printing machinery, packaging machinery, food machinery,

electric drum, reducer, and transfer of test equipment, etc.
